6 Warning Signs of Low Transmission Fluid
Real symptoms, the difference between “low” and “degraded” fluid that most guides collapse together, and why gear engagement works differently in a manual vs. an automatic. US & Canada, 2026.
One bottle usually covers the membership fee outright, every order after that is pure savings. See how the membership works →
By Alan Williams, AMSOIL Direct Jobber #1243776 · Tomball, TX · 225-441-6397
On This Page
Quick Answer
Delayed or slipping shifts, whining or grinding noises, overheating, a burnt smell or discolored fluid, and dashboard warnings are the main signs to watch for. But there’s a distinction most guides skip: low fluid level and degraded fluid quality can cause nearly identical symptoms even when the level is completely full. A full dipstick doesn’t rule out a problem if the fluid itself has broken down.
Also worth knowing: these signs mostly describe automatic transmissions specifically. An automatic relies on hydraulic fluid pressure to engage its clutch packs and torque converter, a manual transmission engages gears mechanically through the clutch pedal and synchros, so low or degraded gear oil in a manual shows up differently, mainly as grinding or difficulty shifting, rather than slipping.
What to Watch For
The 6 Signs
1. Delayed or sluggish gear shifts
On an automatic, hesitation or rough engagement when shifting from Park to Drive, or between gears while driving, often points to insufficient fluid pressure. On a manual, the equivalent sign is difficulty getting into gear or grinding during a shift, a different mechanism, but the same underlying message: something’s off with lubrication.
2. Transmission slipping
If the engine revs without a corresponding increase in speed, or the transmission unexpectedly shifts out of gear, that’s slipping, and it’s specific to automatics and wet-clutch designs. It means there isn’t enough fluid pressure to keep the clutch packs engaged. This can escalate to permanent damage quickly, check the fluid as soon as you notice this.
3. Unusual noises
Whining or humming while in gear, or clunking and grinding during shifts, both point to inadequate lubrication inside the system. New noises that weren’t there before are worth investigating regardless of which type of transmission you have.
4. Overheating
Fluid cools the system as well as lubricating it. Low levels mean less cooling capacity, which can trigger a dashboard warning or force the vehicle into limp mode to protect the transmission. Heavy traffic, towing, and extreme heat all make this worse.
5. Burning smell or discolored fluid
A burnt smell usually means the fluid has overheated and started breaking down. Pull the dipstick: bright red is healthy, brown or black means burnt, milky or cloudy suggests contamination (often coolant intrusion, a more serious issue). This is also where the low-vs-degraded distinction matters most, dark or burnt fluid at a normal level is a quality problem, not a quantity problem, and needs a fluid change either way.
6. Dashboard warning lights
Many vehicles trigger a warning light or the check engine light when sensors detect low fluid or abnormal pressure. If this comes on alongside any of the signs above, don’t ignore it, see Transmission Warning Light Symbols for what your specific dashboard icon likely means.
Stick Shift Owners
Signs of Low Transmission Fluid in a Manual Transmission
A manual gearbox doesn’t use fluid pressure to shift, so it won’t slip or hesitate the way an automatic does. Low fluid in a manual shows up as wear and heat instead, and the signs are easy to miss until damage has already started.
- Hard or notchy shifts, especially when the car is cold. The synchronizers rely on the fluid to match gear speeds, so shifts start to fight you.
- Grinding going into gear, even with the clutch pedal all the way down.
- Whining or howling that rises with road speed. Gears and bearings that are short on lubricant get louder as speed climbs.
- Popping out of gear under load or when you lift off the throttle, a later-stage sign of worn gears or synchros.
- Gear oil spots under the car. Manual gearbox fluid is often darker and thicker than ATF, and gear oil has a strong sulfur smell.
Most manual transmissions have no dipstick. The level is checked at the fill plug on the side of the case: with the vehicle parked level, the fluid should come right up to the bottom edge of the fill hole. Some manuals take gear oil, others take a dedicated manual transmission fluid or even ATF, so confirm the spec in your owner’s manual before adding anything.
Where the Fluid Goes
What Causes Low Transmission Fluid?
Unlike engine oil, transmission fluid isn’t burned or used up in normal driving. It circulates in a sealed system, so if the level is low, the fluid went somewhere. In almost every case that means a leak, or a level that was never set correctly after the last service.

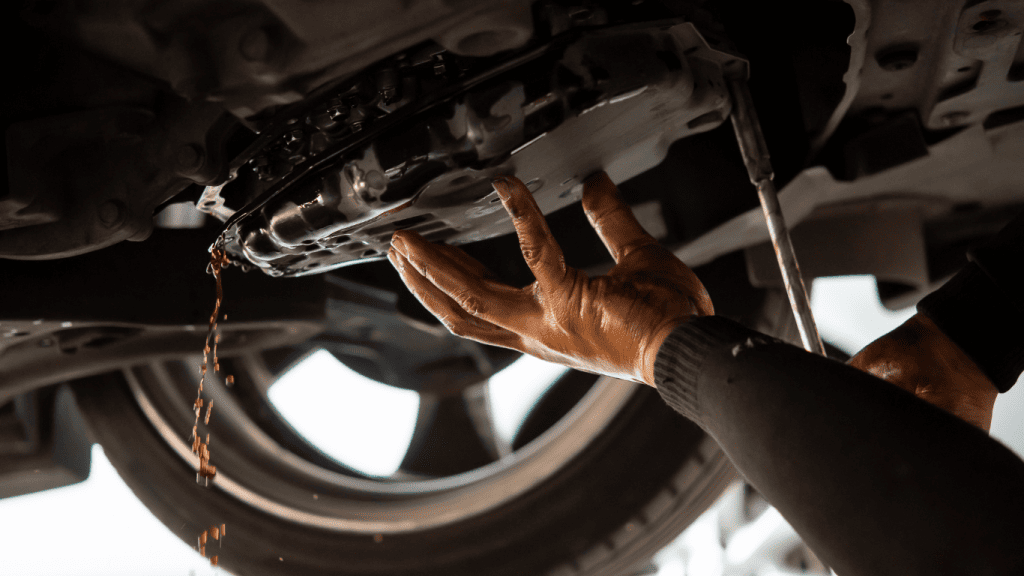

- Pan gasket or drain plug: the most common source, especially after a fluid service where the gasket was reused or the bolts were overtightened.
- Cooler lines and fittings: the lines that run to the radiator or a separate cooler can rub through, corrode or work loose.
- Axle or output shaft seals: leaks where the axles or driveshaft leave the transmission.
- Front pump or torque converter seal: fluid dripping from the joint between the engine and the transmission.
- Underfilled after a service: refilling by quart count instead of checking the level the way the manufacturer specifies.
Fresh automatic transmission fluid is usually red and turns brown as it ages, which helps tell it apart from engine oil (amber to black) and coolant (green, orange or pink). See what color transmission fluid should be for a full color guide.
What’s at Stake
Can Low Transmission Fluid Cause Damage?
Yes, and faster than most people expect. In an automatic, the fluid does three jobs at once: it supplies the hydraulic pressure that applies the clutches and bands, it lubricates the gears and bearings, and it carries heat out to the cooler. When the level drops, the pump starts pulling air, pressure falls, and the clutches slip instead of locking up. Slipping creates heat, and heat breaks the remaining fluid down even faster.
A widely cited industry rule of thumb puts normal fluid temperature around 175°F, with seals starting to harden around 240°F and clutches and bands slipping on their own around 260°F. The exact numbers vary by transmission, but the chain is always the same: low fluid leads to heat, and heat is what destroys transmissions. The parts that usually take the damage first:
- Clutch packs and bands: the friction material glazes and burns.
- Torque converter: overheats, and debris can damage the lockup clutch.
- Seals: harden and start leaking, which drops the level even further.
- Valve body: debris from burnt clutch material clogs its small passages.
How long can you drive with low transmission fluid? There’s no safe number. If the level is only slightly low and the car still shifts normally, top it up to the correct level and track down the leak soon. If it’s slipping, flaring between gears, or slow to engage Drive or Reverse, every mile adds wear, so correct the level before driving further or have it towed. If you’re not sure how to read the level, follow our guide on how to check transmission fluid.
Next Steps
What to Do If You Notice These Signs
- Stop driving if symptoms are severe, slipping or grinding under load risks real damage
- Check the fluid level and condition if your vehicle has a dipstick
- Top up with the correct fluid type only, never mix types or overfill
- Get a professional inspection if the level is fine but symptoms persist, that points to degraded fluid or an internal issue rather than a simple top-off
Getting Ahead of It
Preventing Low Fluid
- Check fluid level and condition periodically, not just when a symptom appears
- Watch for leaks under the vehicle or discoloration on the dipstick
- Follow your manufacturer’s service interval, or see the full Transmission Flush vs. Drain-and-Fill guide for the decision framework
- Use a quality synthetic fluid that resists oxidation and holds its properties longer between services
The Preferred Customer Program
Wholesale Pricing If You Need Fluid
- 25% off retail pricing on every AMSOIL product, every order, all year
- $20 a year (charged in local currency at checkout for Canadian members), no minimum purchases
- Ships to both the US and Canada
Sign up once, save 25% on every order after.
$20/year, no minimums, ships to the US & Canada.
Alan’s Take
“The mistake I see most is someone pulling the dipstick, seeing it’s full, and assuming that rules out the transmission. It doesn’t. A full stick of dark, burnt fluid causes nearly the same symptoms as low fluid, because it’s failed at its job either way. Check the color and smell, not just the level.”
Frequently Asked Questions
Can transmission fluid be full but still cause problems?
Yes. Degraded, burnt, or contaminated fluid can cause nearly the same symptoms as low fluid, even at a normal level. Checking the color and smell matters as much as checking the level.
Do manual transmissions show the same signs of low fluid as automatics?
Not exactly. Automatics rely on hydraulic fluid pressure to engage clutch packs, so low fluid causes slipping. Manual transmissions engage gears mechanically through the clutch and synchros, so low or degraded gear oil tends to show up as grinding or difficulty shifting rather than slipping.
How long can you drive with low transmission fluid?
There’s no safe distance. If the level is only slightly low and the car shifts normally, top it up and find the leak soon. If the transmission is slipping, flaring between gears or slow to engage, stop driving until the level is corrected, because every mile under those conditions adds heat and clutch wear.
Does a transmission use up fluid like an engine burns oil?
No. Transmission fluid circulates in a sealed system and isn’t consumed in normal driving. If the level is low, there’s a leak somewhere, or the fluid was underfilled at the last service.
Is it safe to keep driving with slipping gears?
Not for long. Slipping means the clutch packs aren’t fully engaging, which generates heat and wear rapidly. Check the fluid as soon as possible and avoid heavy loads or long drives until it’s addressed.
Where can I buy AMSOIL transmission fluid at wholesale pricing?
Through the AMSOIL Preferred Customer program: $20 a year for a permanent 25% discount on every order, shipping to both the US and Canada.
